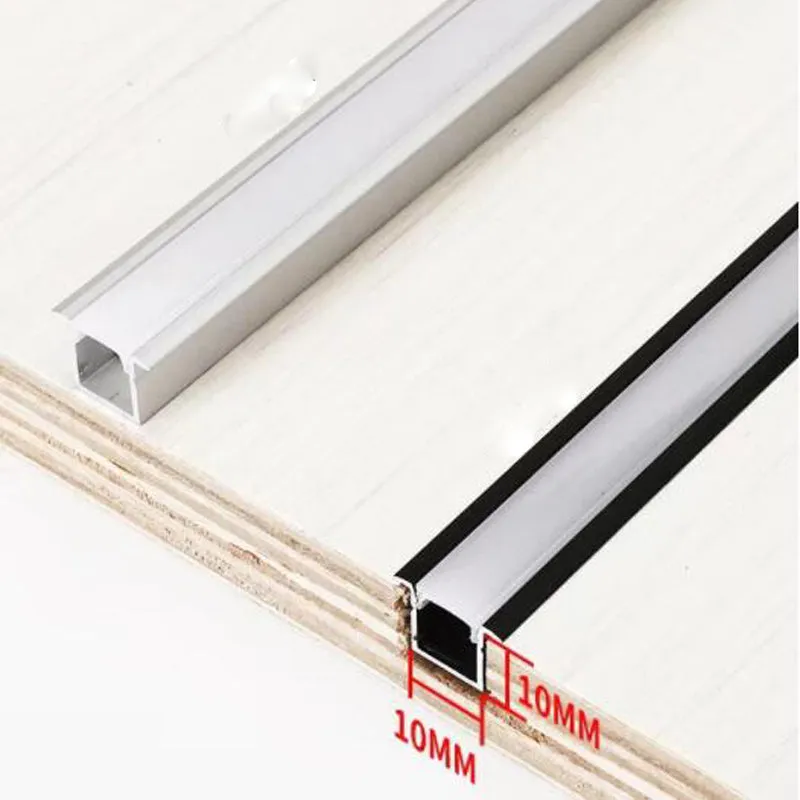

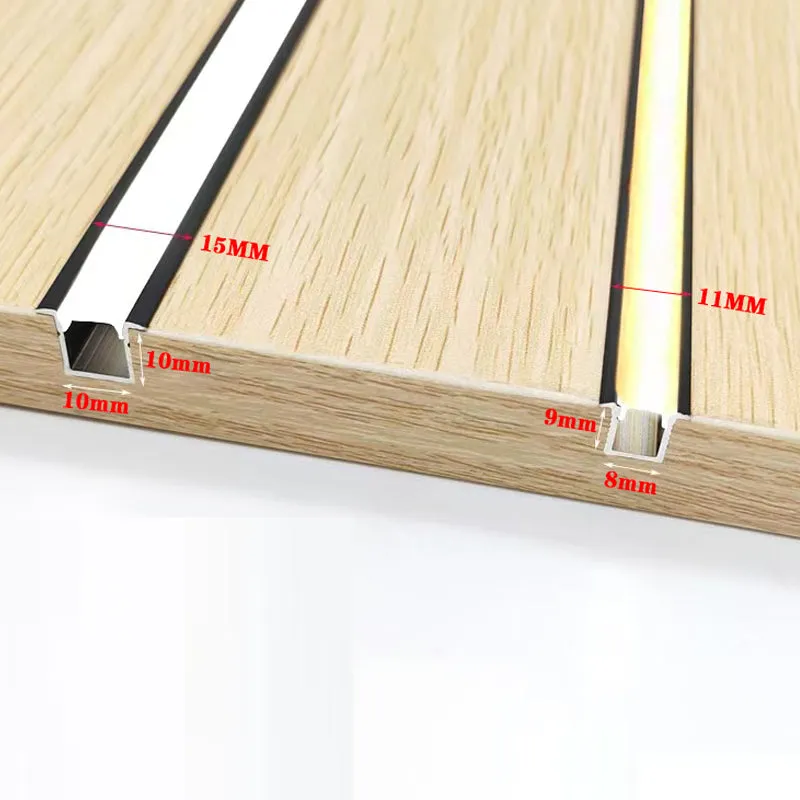

Super slim led aluminum channel is aluminum extrusion products,using for interior decoration,high quality,good price,excellent service. This aluminum channel comes with two ultra thin size: 10mmx10mm or 8mmx9mm.

Aluminum Led Profile Super Slim Led Aluminum Channel For Led Garage Door Lights, Led Wall Light Bars, Led Down Light Bars And Led Panel Light Bars.-shipment :by freight or by air or by sea

Led strip lights come with separate packages, not sticking in the profiles.

LED strips aluminum channel is a new-style light box,it is designed by ourselves and produced by our factory.This channel can cut to different size and shape with cnc machine.And this series of product are very popular on the market.

Go to our B2B Wholesale website:

When Placing an order, please remark: aluminum profile finish: silver or black, we will appreciated

Specifications:
* Configuration: U-Shape
* LED Strip Width: 5-8mm
* Channel Finish: Anodized Extruded aluminum, Black, Silver
* Cover Material: Frosted Plastic
* Length: 20x1meter: 30x1meter: 20x2meter: 30x2meter: 20x3meter; 30x3meter;
* Package includes:

20x1meter:

• 20 x 1m (3.3ft) Silver Aluminum U-channel
• 20x Milky white PC cover
• 40 x Metal Mounting clips
• 20m 12V 2835 120led/m led strip lights (2x5m)
• 40x End caps (20pcs in deaf and 20pcs with hole)
• 40 x Screws

30x1meter:

• 30 x 1m (3.3ft) Silver Aluminum U-channel
• 30x Milky white PC cover
• 60 x Metal Mounting clips
• 30m 12V 2835 120led/m led strip lights (6x5m)
• 60x End caps (20pcs in deaf and 20pcs with hole)
• 60 x Screws

20x2meter:

• 20 x 2m (6.6ft) Silver Aluminum U-channel
• 20x Milky white PC cover
• 80 x Metal Mounting clips
• 40m 12V 2835 120led/m led strip lights (8x5m)
• 40x End caps (20pcs in deaf and 20pcs with hole)
• 80 x Screws

30x2meter:

• 30 x 2m (6.6ft) Silver Aluminum U-channel
• 30x Milky white PC cover
• 120 x Metal Mounting clips
• 60m 12V 2835 120led/m led strip lights (12x5m)
• 60x End caps (30pcs in deaf and 30pcs with hole)
• 120 x Screws

20x3meter:

• 20 x 3m (9.9ft) Silver Aluminum U-channel
• 20x Milky white PC cover
• 120 x Metal Mounting clips
• 60m 12V 2835 120led/m led strip lights (12x5m)
• 40x End caps (20pcs in deaf and 20pcs with hole)
• 120 x Screws

30x3meter:

• 30 x 3m (9.9ft) Silver Aluminum U-channel
• 30x Milky white PC cover
• 90 x Metal Mounting clips
• 90m 12V 2835 120led/m led strip lights (18x5m)
• 60x End caps (30pcs in deaf and 30pcs with hole)
• 180 x Screws

Including DC12V 2835 120led per meter Specification:

Item No,: SC-SMD2835X120F-V12

LED Type:  SMD2835
LED QTY.: 120LED/Meter     600led 5m 16.4ft
Input Voltage: 12V DC
Wattage (max): 14Watt/Meter
Cuttable: Every 6LED a unit can be cut

Lumen Flux: 100LM/W   1400lm/meter

CRI>80Ra

CCT:Cool White 6000-6500K  Warm White: 3000-3500K

PCB Width: 8mm

QA:

1. where is your location? Where do you send the goods from?

We are in Hong Kong, China and send all the goods from China Mainland.

2. Can you ship the goods to US, CA, AU or Europe?

We ship the goods to the whole world including USA, Canada, Australia, European Countries

3. How long does it takes to ship to US.European countries?

It takes about 35-45days to arrive in US after sending, to Eurpean countries, about 40-55days. To Asia, it takes around 25-40days. To other countries, 50-60days roughly.
